Our Complete Quads & Gas Bundle Frame Product Range
We at AMI are aware that no two operations are quite the same. Because of this, we provide robust and adaptable chassis solutions in six main product lines, each designed to meet a particular operational requirement.

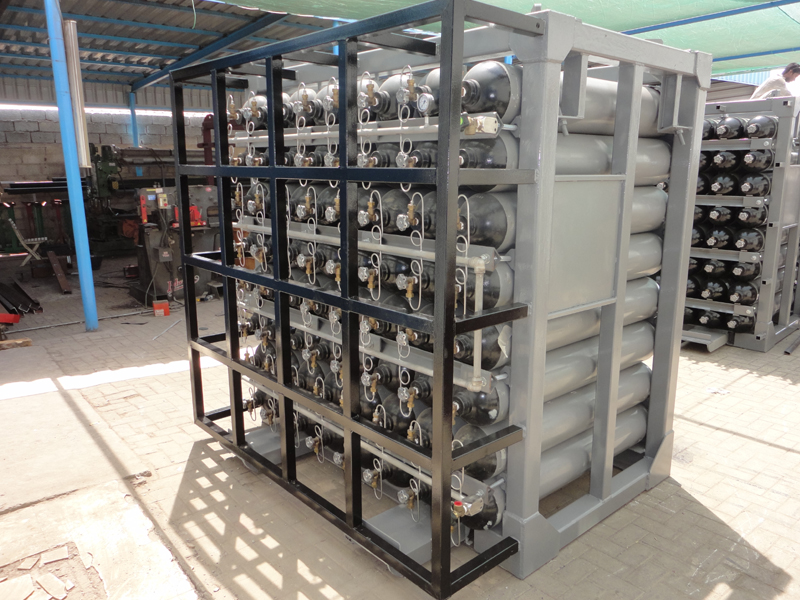

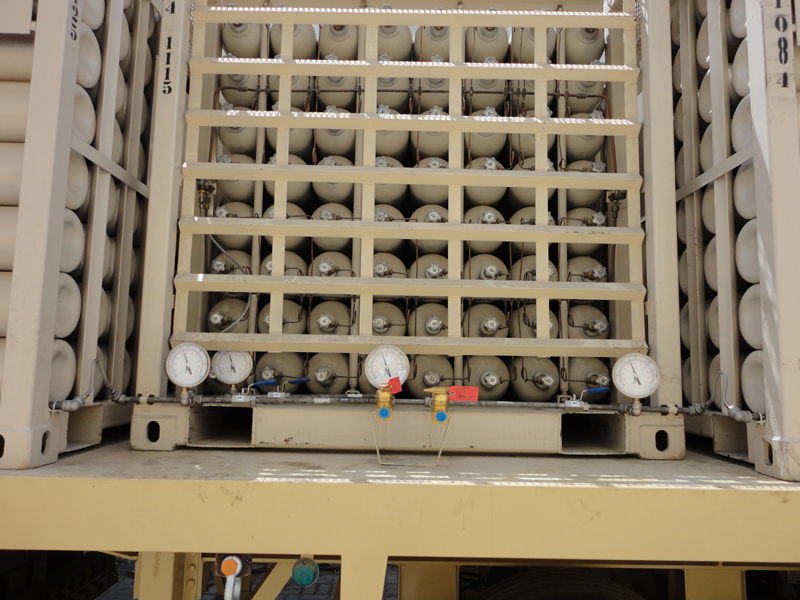

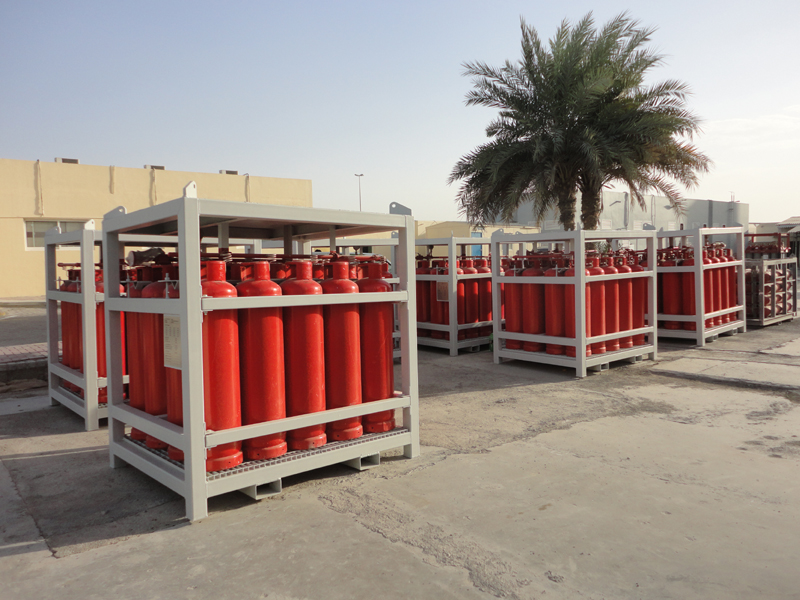

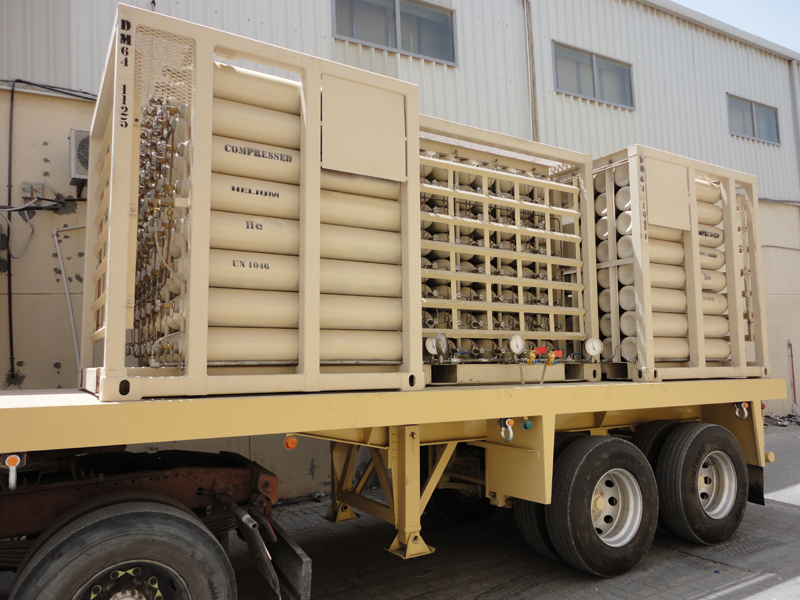

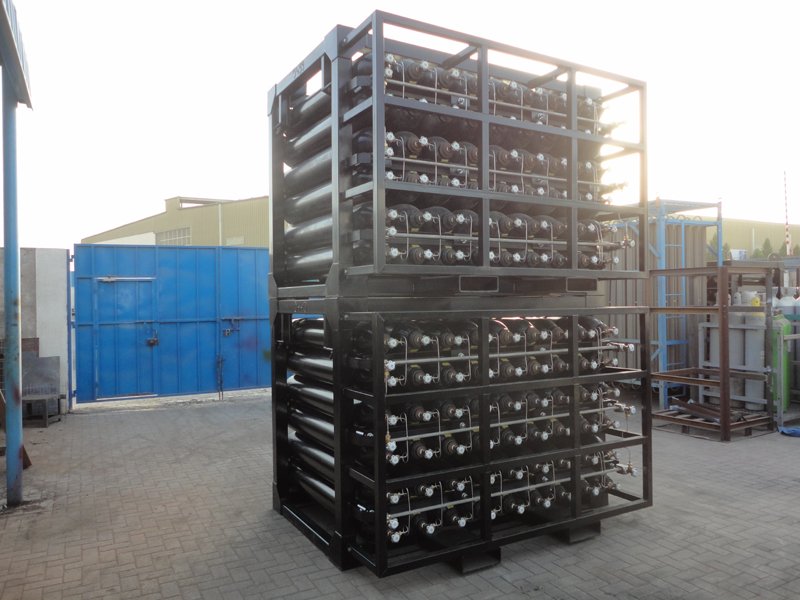

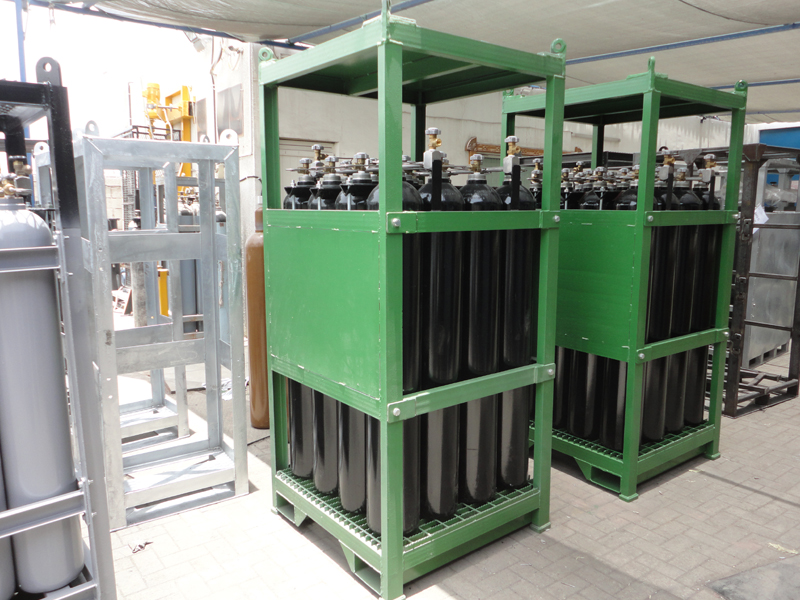

64 & 54 Cylinder Racks — Large-Scale Gas Bundle Cylinder Storage
The AMI 64 and 54 cylinder racks are the ultimate in large-scale gas bundle cylinder management, designed for high-demand industrial processes and bulk gas supply. Made of premium steel with structural strength that allows for crane lifting and stacking, these racks are perfect for bulk storage of nitrogen and oxygen at offshore platforms, hospitals, and industrial facilities.
- Designed to store and distribute large volumes of gas under harsh conditions
- Crane-liftable and stackable — compatible with common lifting tools
- Offered in 54 or 64 cylinder designs for maximum capacity
- Designed using premium steel ATV trailer structural integrity at the frame level

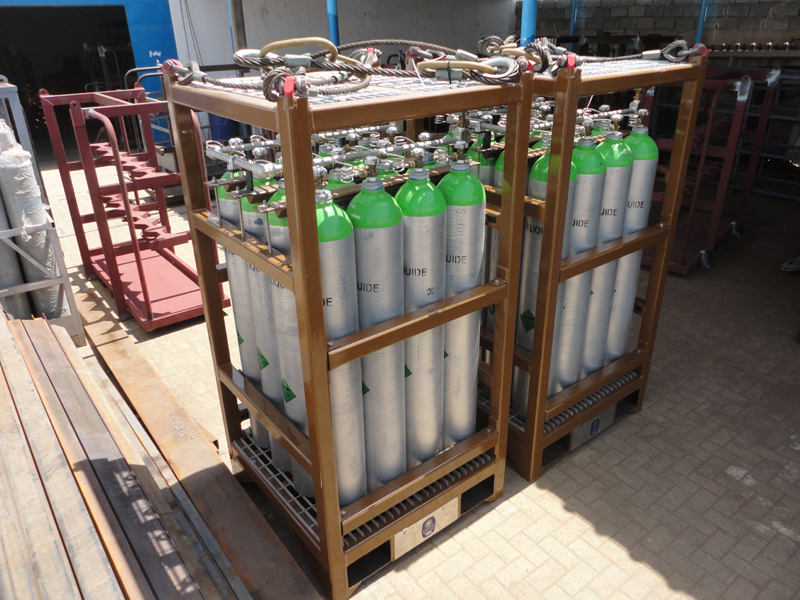

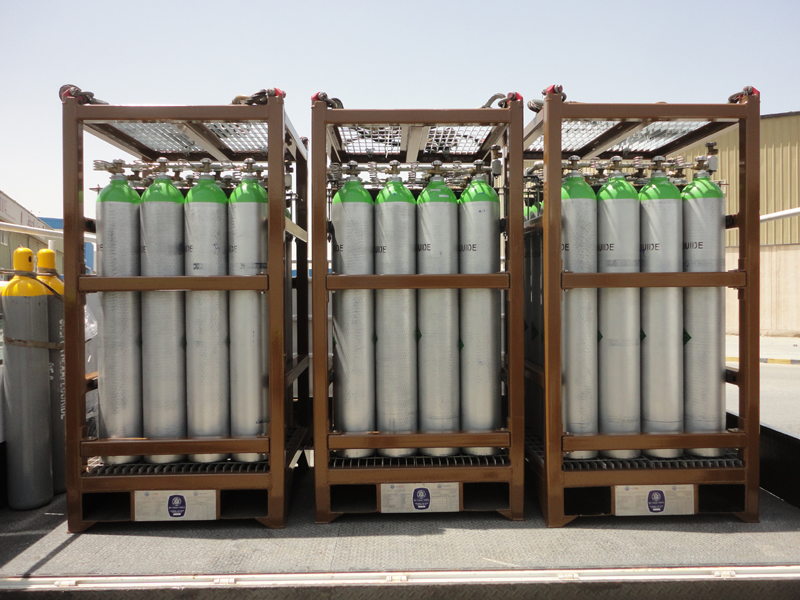

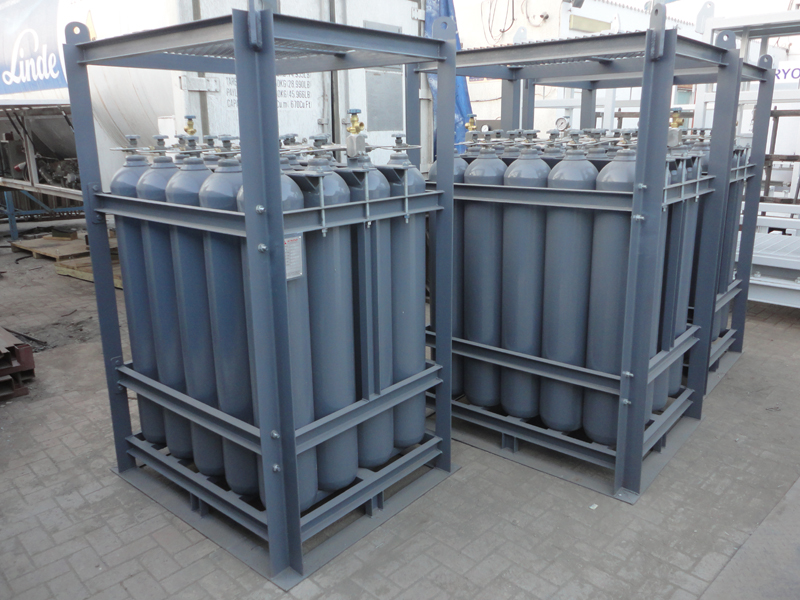

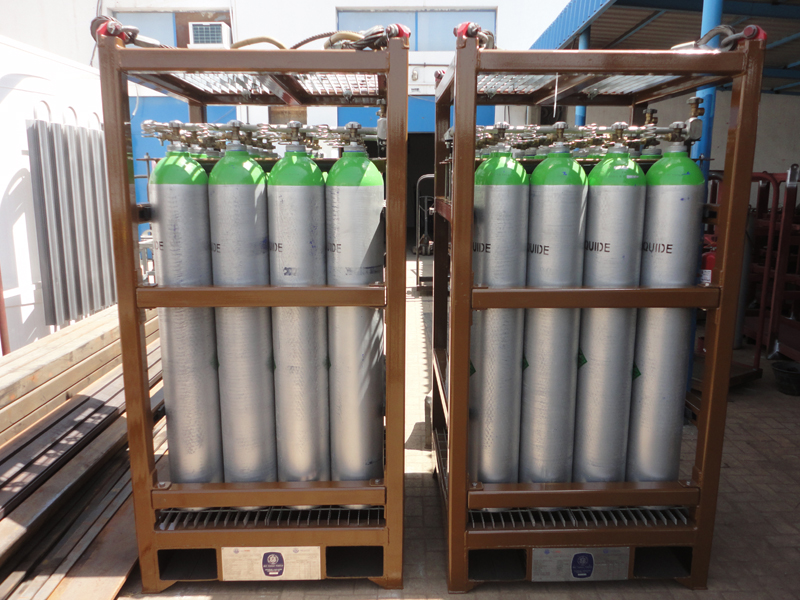

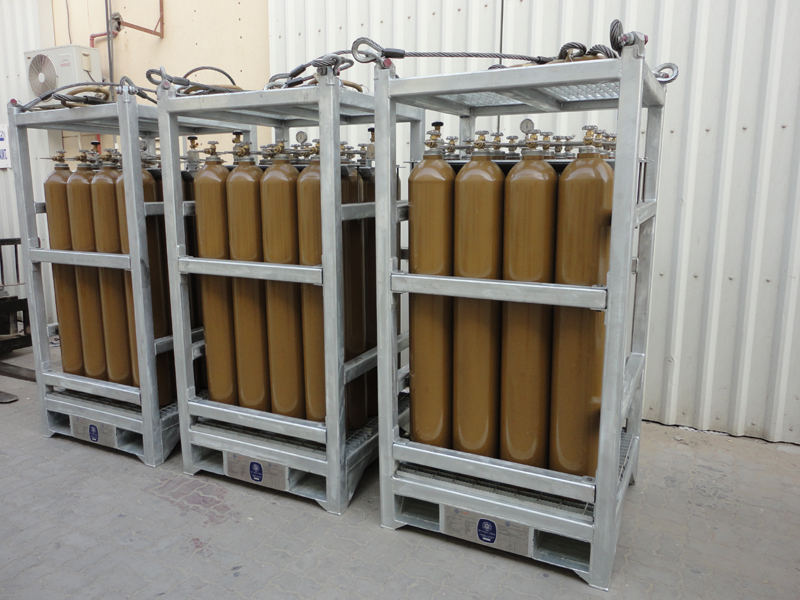

DNV Certified 16 Cylinder Gas Quads — Offshore-Grade Compliance
For offshore oil and gas producers who require complete adherence to international lifting and handling regulations, our DNV certified 16 cylinder gas quads are the preferred option. Constructed in accordance with DNV 2.7-1 and EN 12079, these frames are certified for crane operations, deck placement, and marine transport.
- Completely compliant with EN 12079 and DNV 2.7-1 offshore safety standards
- Standard 16-cylinder setup — one of the most popular configurations in the offshore industry
- Structurally designed for maritime deck usage and crane-lift rated operations
- Perfect for DNV gas banks installed on supply ships, rigs, and FPSOs

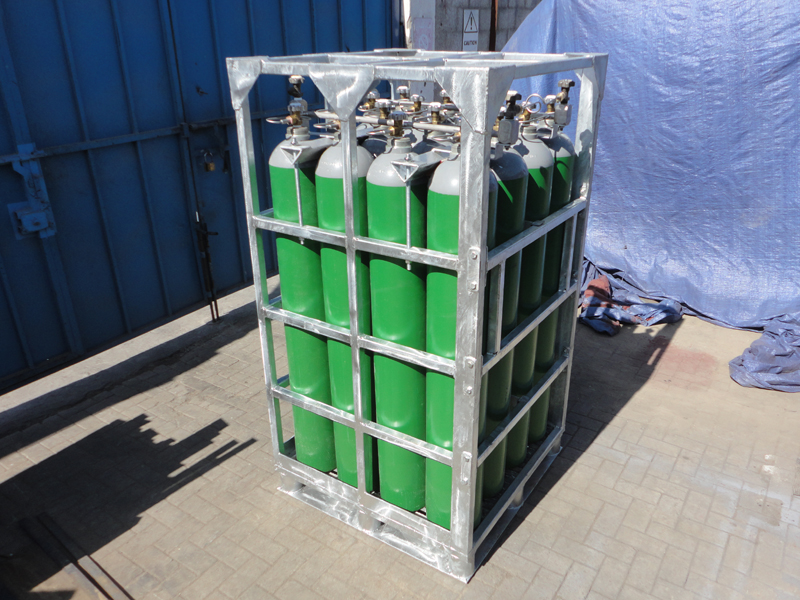

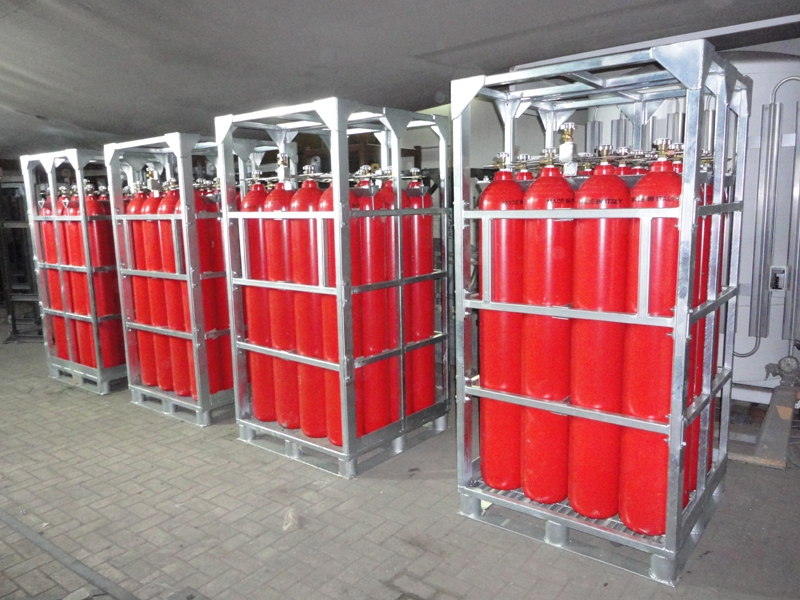

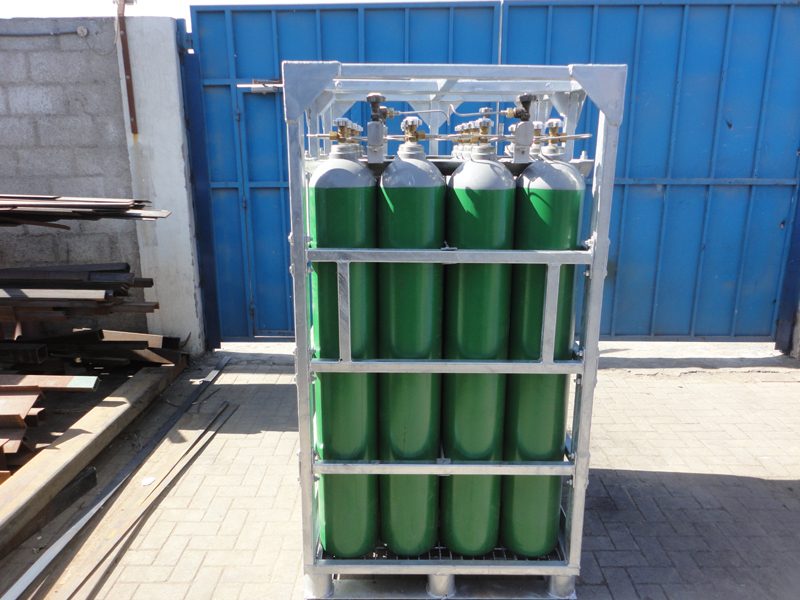

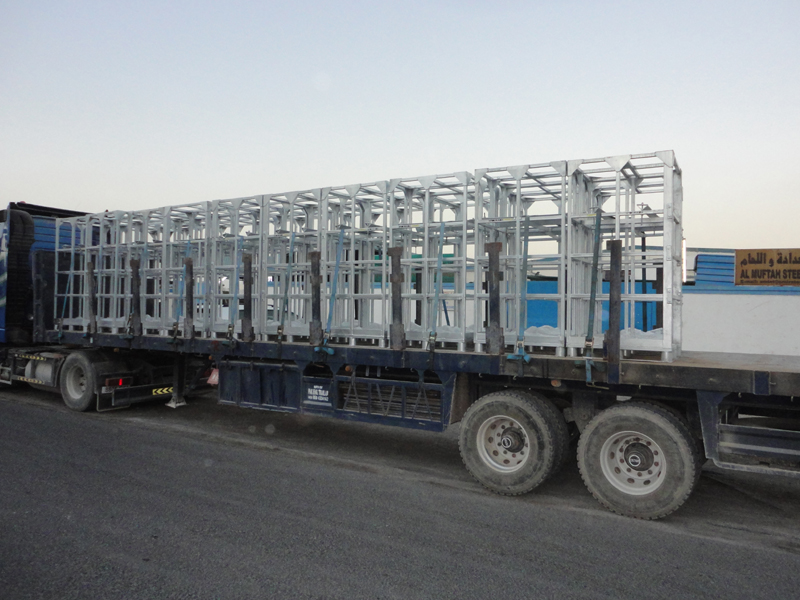

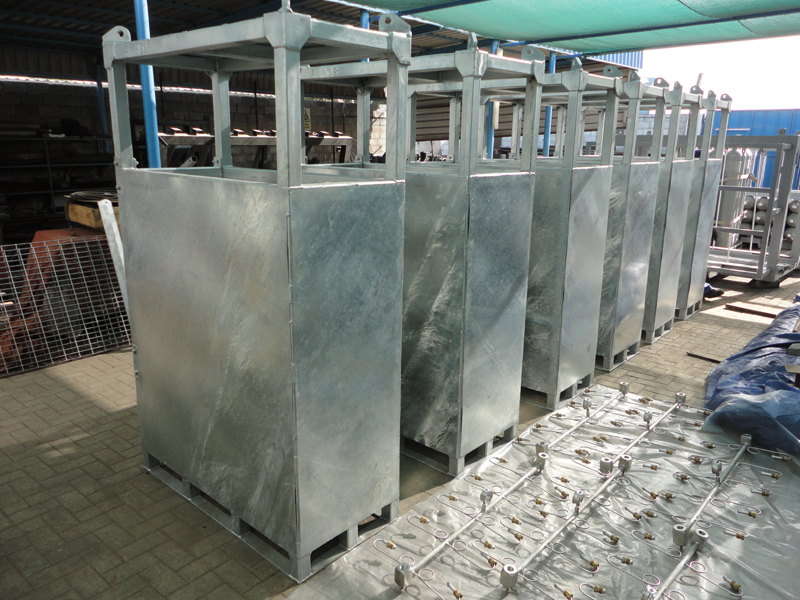

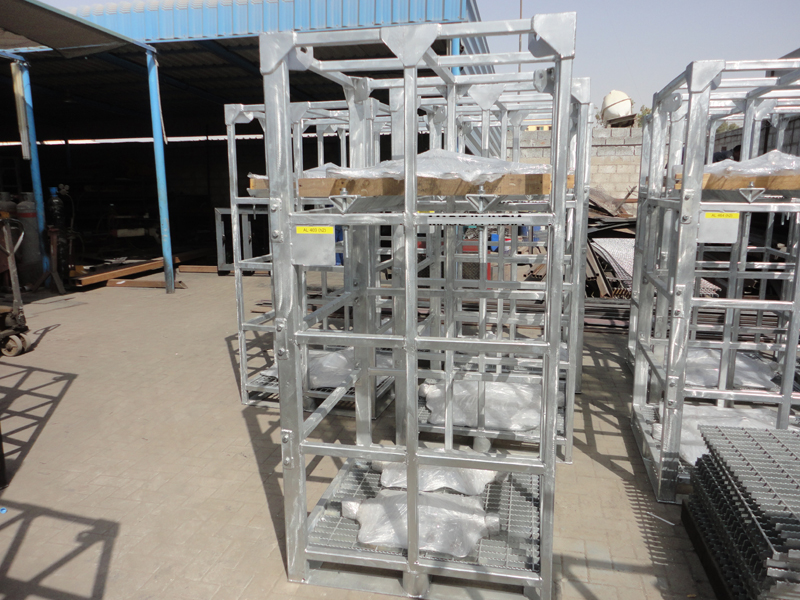

Hot Dip Zinc Plated Galvanized Rack Bundles — Corrosion-Proof Performance
Our galvanized rack bundles provide unparalleled protection for activities in high-humidity, offshore, or coastal settings. The high-pressure hot dip zinc plated finish provides rust and corrosion resistance that conventional paint coatings simply cannot match.
- Hot dip galvanized to protect against marine corrosion and chemical exposure
- Perfect for exposed storage yards, coastal gas supply stations, and offshore platforms
- Long-term finish durability dramatically lowers maintenance expenses
- Built using the same structural grade as our regular rack line

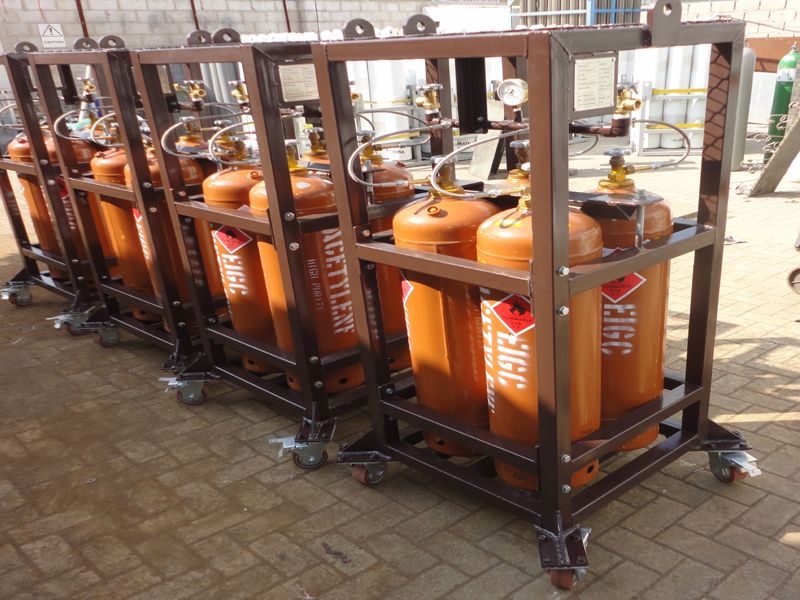

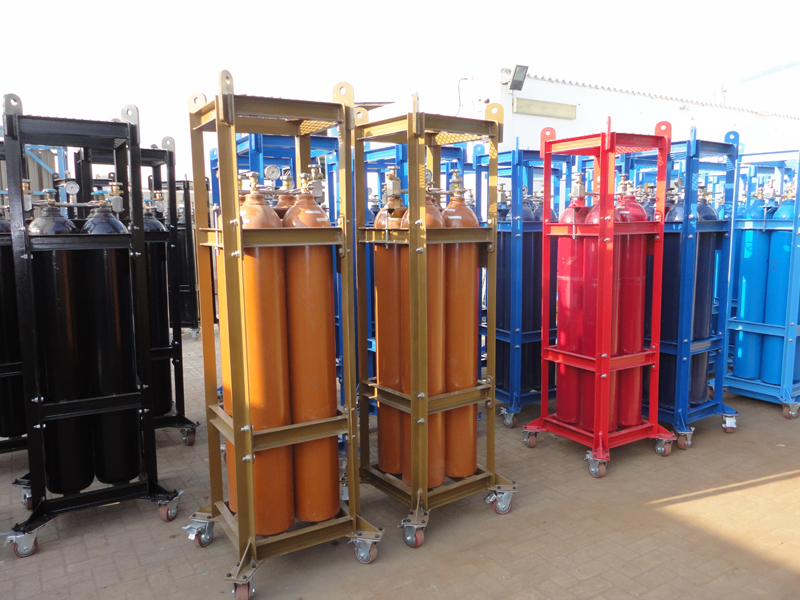

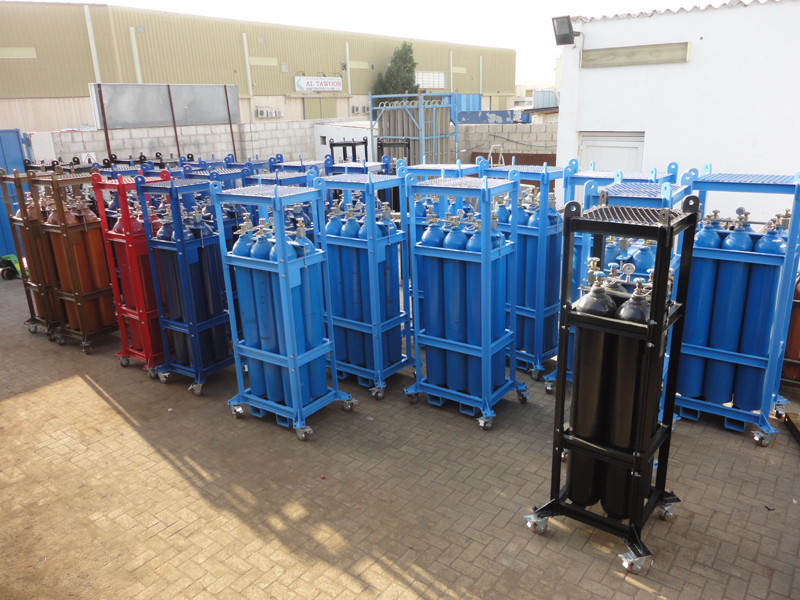

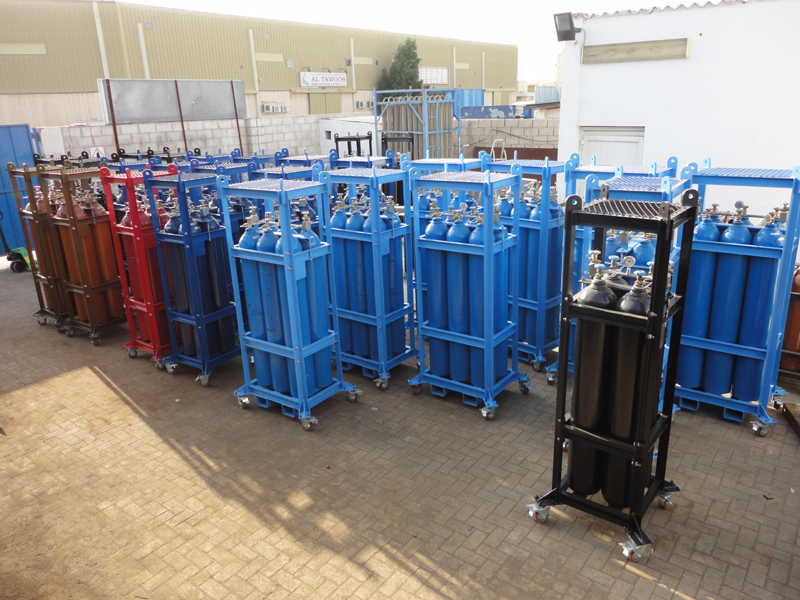

Quads on Wheels — Mobility Meets Heavy-Duty Gas Cylinder Handling
Our Quads on Wheels provide the freedom to move your gas cylinder bundle across a plant without a forklift every time. These mobile units enable the safe and effective movement of loaded cylinder bundles on site, across warehouse floors, or in production areas thanks to a sturdy quad frame chassis on castor wheels.
- Easy mobility on-site with a chassis placed on castor wheels
- Various cylinder configurations available to meet site specifications
- Suitable for nitrogen, oxygen, argon, and other industrial gas cylinders
- Perfect for industrial manufacturing, hospitals, laboratories, and welding shops

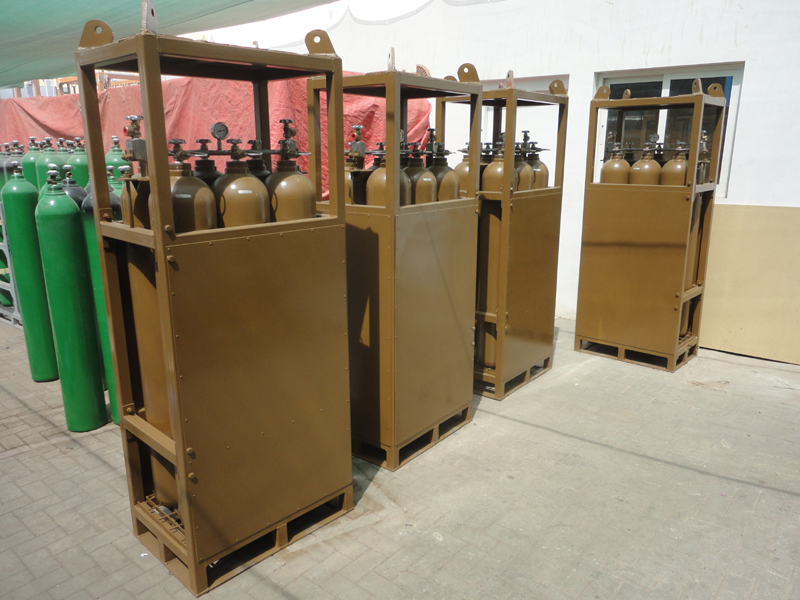

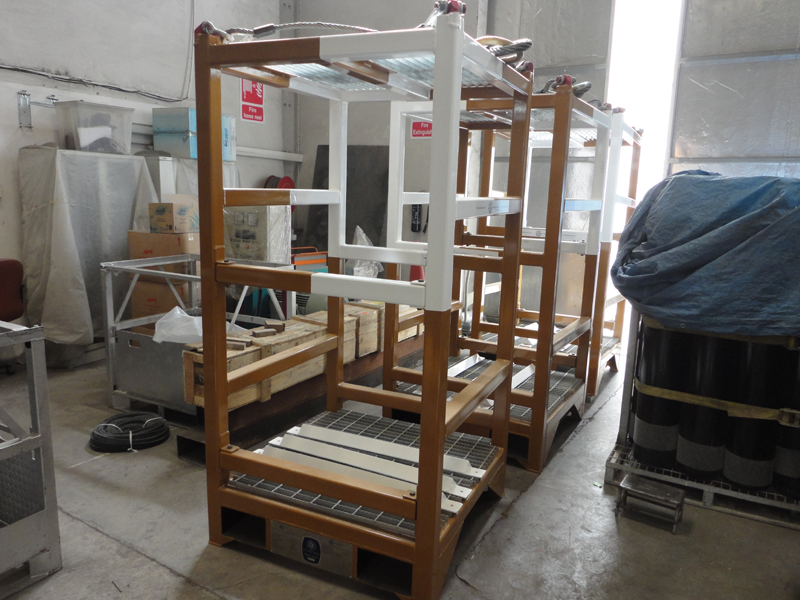

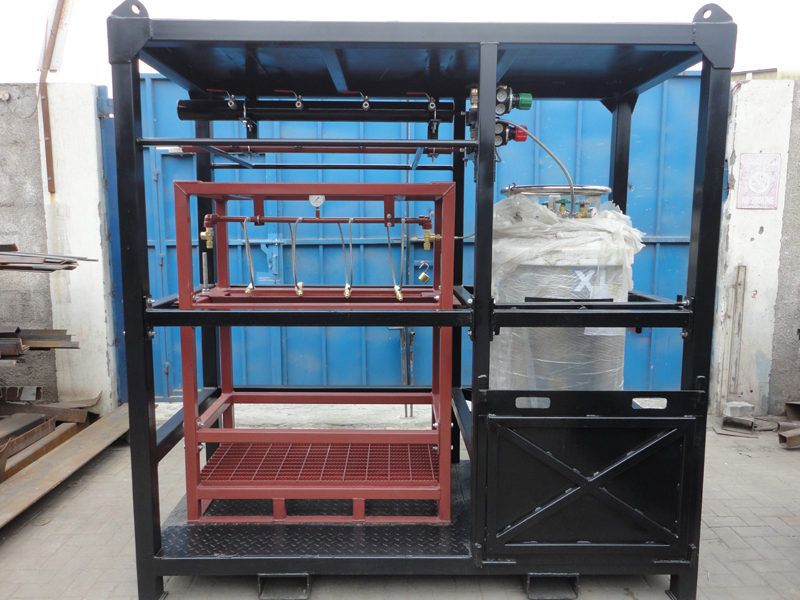

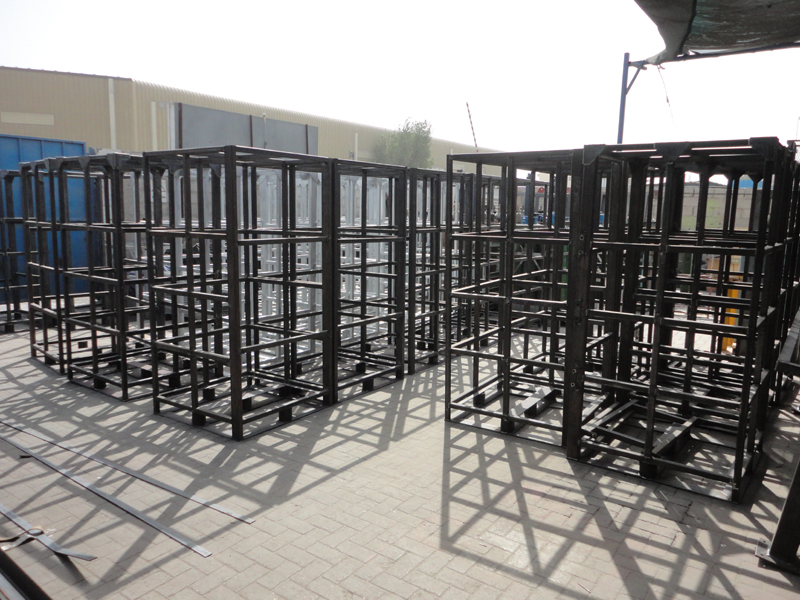

Quads Racks — Precision-Built for Optimal Quad Frame Selection
AMI Quads Racks are made for customers who want accuracy in their quad frame selection, matching precise cylinder counts, pressure ratings, and spatial specifications. The modular architecture allows alteration to suit various manifold integration, valve configurations, and cylinder sizes.
- Completely adjustable dimensions — designed to meet your precise requirements
- Modular construction makes upkeep, repairs, and upgrades simple
- Ideal for 4, 12, 16, or 24 cylinder configurations

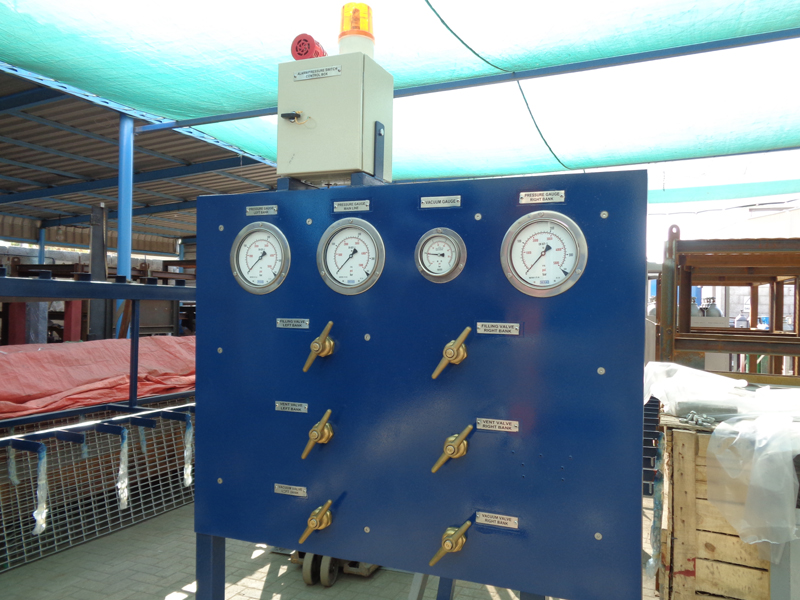

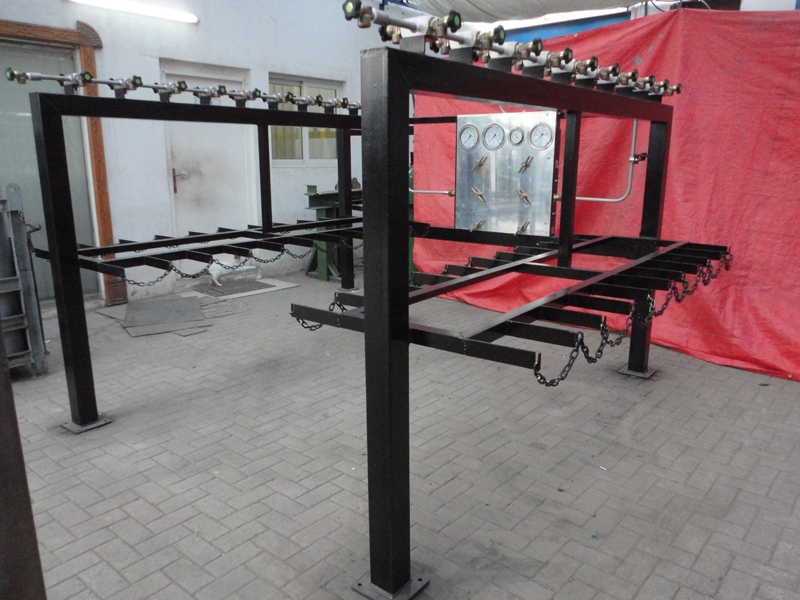

- Compatible with manifold systems for oxygen and nitrogen bottle handling

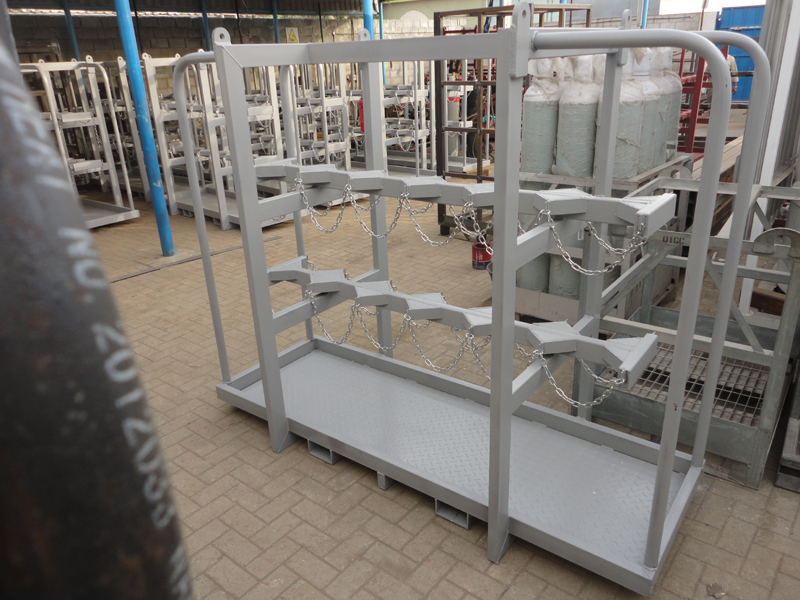

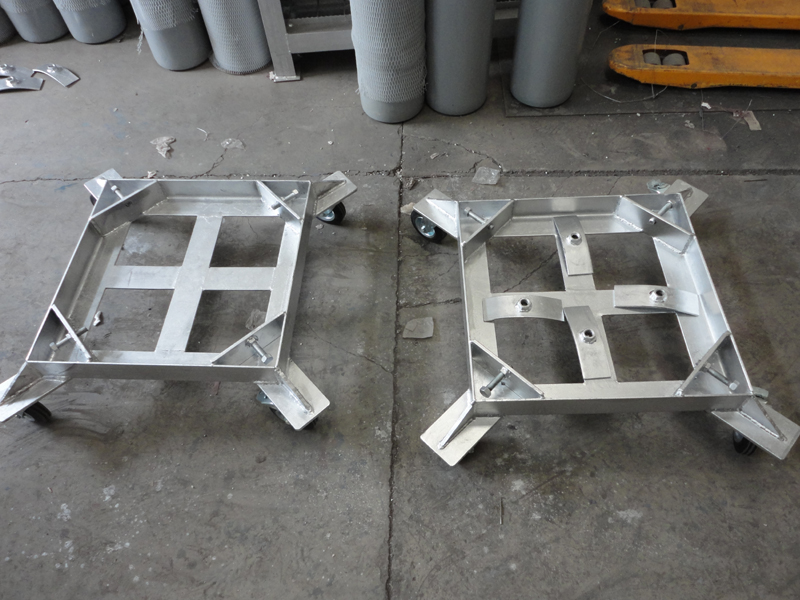

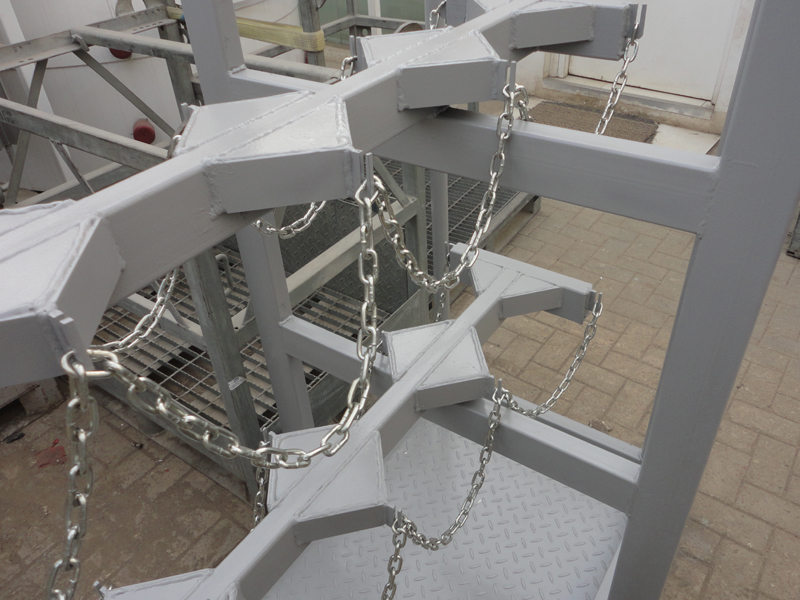

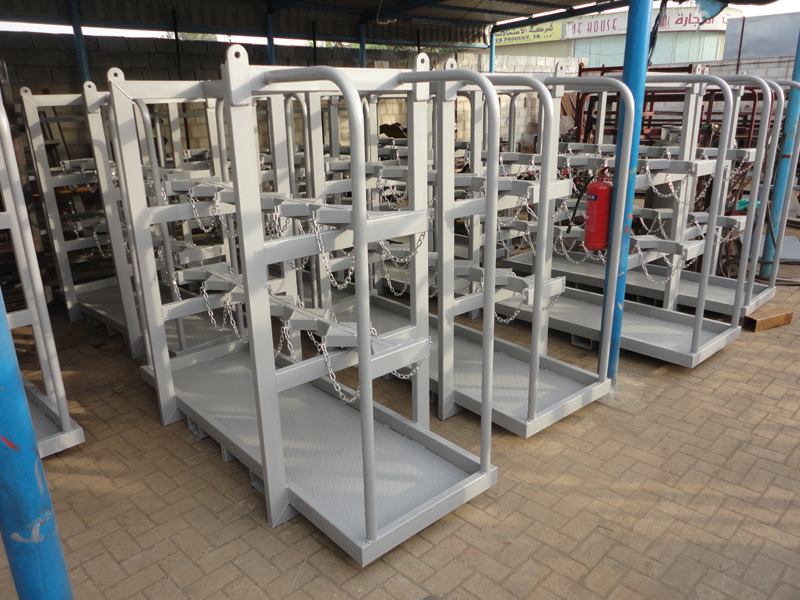

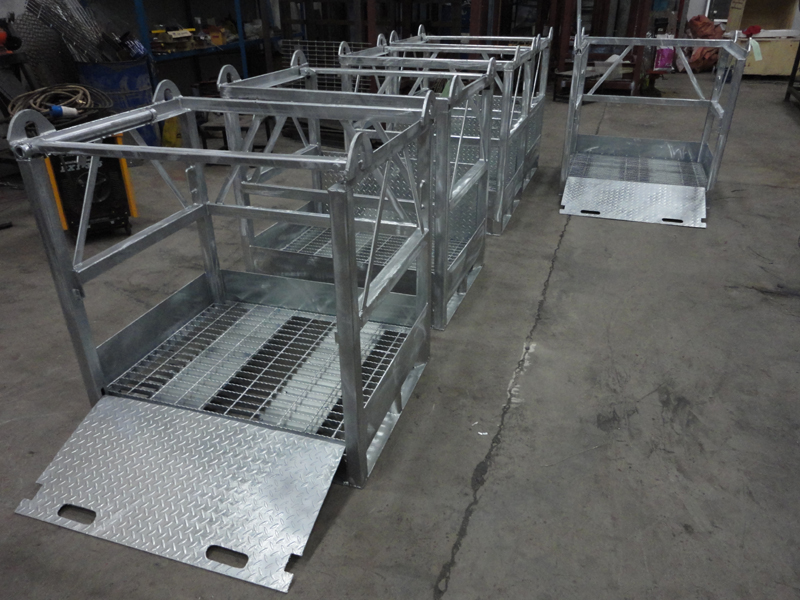

Steel Palettes & Baskets — Versatile Gas Bundle Cylinder Containment
Our Steel Palettes and Baskets provide a flexible, cost-effective solution for cylinder storage and transportation, completing the AMI product line. Available in a variety of sizes and combinations without compromising any of the structural dependability AMI is renowned for.
- Perfect for industrial storage facilities, warehouses, and workshops
- Designed to maximise available space and facilitate forklift access
- Customised basket combinations available to match your cylinder inventory
- Constructed from robust structural steel for enduring functionality
Technical Specifications of Quads / Gas Bundle Frames
| Certification Standards | DNV 2.7-1 / EN 12079 |
| Standard Configurations | 4, 12, 16, and 24 cylinders (custom dimensions available) |
| Large Rack Configurations | 54 and 64 cylinder rack bundles |
| Material | High quality structural steel; ATV trailer frame-grade construction |
| Surface Treatment | High pressure hot dip zinc plated galvanizing or primer coat finish |
| Lifting Compliance | Offshore lifting and handling of pressured gas — crane-rated, offshore certified |
| Gas Applications | Nitrogen, Oxygen, Argon, Mixed Industrial Gases |
| Customisation | All dimensions and configurations available on request |
| Mobility Options | Static racks, pallet-base, or castor-wheel mounted (Quads on Wheels) |
| Compliance Standards | DNV gas banks certification | International offshore safety standards |
What Makes AMI Quads & Gas Bundle Frames the Right Choice?
Engineered for Reliability. Built for the Long Haul.
- DNV Certified Offshore Safety: The gold standard for handling offshore gas cylinders — DNV 2.7-1/EN 12079 — is met by every frame in our offshore line.
- Durable and Customisable Chassis: From 4-cylinder portable formats to whole 64-cylinder industrial installations, we provide robust and adaptable chassis solutions.
- Corrosion-Resistant Finish: Our high pressure hot dip zinc plated galvanized racks are designed to withstand exposure to chemicals, moisture, and salt.
- Full Product Range — One Supplier: AMI provides all your gas bundle cylinder handling needs from a single, reliable source.
- Versatile Gas Compatibility: Frames made for nitrogen, oxygen, argon, and other industrial gas cylinders — ideal for medical, industrial, and offshore supply lines.
- End-to-End Aftermarket Support: Maintenance, inspection, refurbishment, and upgrade services from the day of purchase.
Material Quality & Build Standards You Can Trust
Our frames are made of approved structural steel, selected for its long-term durability and ability to support loads in both industrial and marine settings. Lightweight frames made of aluminium alloy grade material are available for specialised applications where weight reduction is required without sacrificing structural integrity.
All AMI frames are built using high-quality steel construction with precise welding, load-tested structural joints, and surface treatments intended to surpass typical service life expectations. Hot dip zinc plating on galvanized products offers long-term corrosion protection even in areas with marine-grade salt exposure.
Industries & Applications — Where Our Quads Perform Best
Offshore Oil & Gas
Our 16-cylinder gas quads with DNV certification are specifically designed for platform deployment, certified in accordance with all offshore safety regulations for crane lifting, deck installation, and container vessel loading.
Industrial Gas Supply
Our 54 and 64 cylinder racks serve as permanent DNV gas banks for large-scale industrial facilities needing bulk nitrogen or oxygen — dependable, stackable, and designed for high-cycle use.
Medical & Healthcare
AMI frames are essential for the safe storage and distribution of oxygen gas cylinder bundles in hospitals and medical gas distributors, where regulatory compliance and precise handling are required.
Manufacturing & Welding
Our mobile quads and compact racks are useful to manufacturers, metal fabricators, and welding operations, making gas bundle cylinder access safe, organised, and effective at any workstation.
Laboratories & Research
Research labs and IVF/stem cell facilities that use specialty gases rely on AMI frames for organised, safe, and compliant cylinder storage.
Marine & Shipyard Operations
Our high pressure hot dip zinc plated galvanized racks are essential for shipyards and marine engineering operations to manage the corrosive marine environment while keeping gas supplies accessible and compliant.
Aftermarket Services — We Are With You Beyond the Purchase
Your Frame Is Only as Good as Its Last Inspection.
For all of our sturdy quad frames and gas bundle systems, we offer a comprehensive lifecycle support programme. Our clients depend on our aftermarket staff for:
- Maintenance and Repair Work: Planned and unplanned maintenance to keep your frames in safe operation
- Inspections and Testing: Regular internal and external inspection services in compliance with DNV and EN standards
- Upgrades and Modifications: Modify current frames to accommodate new manifold arrangements, cylinder sizes, or higher capacity needs
- Refurbishing: Re-galvanising, re-certification, and structural refurbishment to prolong the life of older frames
Our team is equipped to respond rapidly, minimise downtime, and return your gas bundle and quads to full operational status — fast.
Why AMI Is the Right Partner for Your Gas Bundle Frame Needs
- Decades of Cryogenic & Gas Expertise: Across the full range of gas handling infrastructure — from certified quads and bundle frames to cryogenic tanks and vacuum-insulated pipe systems.
- International Standards Compliance: All AMI products are designed, manufactured, and tested in accordance with DNV 2.7-1, EN 12079, and relevant regional safety regulations.
- Custom Engineering Capability: Our in-house engineering team creates robust and adaptable chassis solutions matching your exact requirements — cylinder diameter, gas type, environment, and lifting specifications.
- Trusted Across the Middle East & Beyond: Gas distributors, offshore contractors, healthcare providers, and industrial facilities rely on AMI quads and gas bundle frames for both domestic and international offshore operations.
Ready to Find the Right Quad or Gas Bundle Frame for Your Operation?
The AMI team is prepared to assist whether you are sourcing a single portable 4-cylinder quad unit or installing a whole offshore platform with DNV certified 16-cylinder gas quads. Tell us about your application, cylinder count, environment, and compliance requirements and we will set up the ideal gas bundle cylinder frame solution for you.
Contact AMI today — Call: +971 - 6 - 5341106
Certified. Durable. Customisable. — AMI Quads & Gas Bundle Frames.
